XDDSP
Available Wattage = 12W, 18W, 24W Specifications 12W 18W 12W CODE XDDSP12 DIMENSION (mm) 121 x 27 LED SIZE SMD LED LED Bridgelux/Cree/Edison IP RATING 20 COLOR TEMP 3000 / 4000 / 6500K LUMEN OUTPUT >100 Lm/W BEAM ANGLE 120° MOUNTING Recess Mount WARRANTY 2 Yrs 18W CODE XDDSP18 DIMENSION (mm) 121 x 27 LED […]
DL10DB
Available Wattage = 10W Specifications 10W 10W CODE DL10DB DIMENSION (mm) 115 x 32 CUT-OUT (mm) 100 LED SIZE SMD LED LED Bridgelux/Cree/Edison IP RATING 20 COLOR TEMP 3000 / 4000 / 6500K LUMEN OUTPUT >70 Lm/W BEAM ANGLE 120° MOUNTING Recess Mount WARRANTY 2 Yrs Enquire Now Technical Sheet -12W

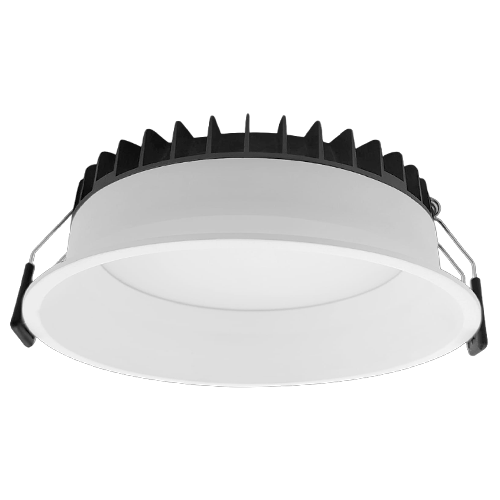

Deep Down Light DL03 series
Available Wattage = 12W, 18W, 24W Specifications 12W 18W 24W 12W CODE DL0312 DIMENSION (mm) 120 x 50 CUT-OUT (mm) 108 LED SIZE SMD LED LED Bridgelux/Cree/Edison IP RATING 20 COLOR TEMP 3000 / 4000 / 6500K LUMEN OUTPUT >100 Lm/W BEAM ANGLE 120° MOUNTING Recess Mount WARRANTY 2 Yrs 18W CODE DL0318 DIMENSION (mm) […]
LED Down Light Y3
Available Wattage = 8W, 12W, 16W, 24W, 30W, 36W Specifications Y35 Y39 Y312 Y315 Y320 Y35 CODE Y35 WATTAGE 5W CUT-OUT (mm) 60 x60 DIMENSION (mm) 75 x 75 x 52 BEAM ANGLE 120º Y39 CODE Y39 WATTAGE 9W CUT-OUT (mm) 85 x 85 DIMENSION (mm) 105 x 105 x 53 BEAM ANGLE 120º Y312 […]
LED Down Light X3
Available Wattage = 8W, 12W, 16W, 24W, 30W, 36W Specifications X35 X39 X312 X315 X320 X325 X35 CODE X35 WATTAGE 5W CUT-OUT (mm) 58 DIMENSION (mm) 82 x 53 BEAM ANGLE 120º X39 CODE X39 WATTAGE 9W CUT-OUT (mm) 85 DIMENSION (mm) 100 x 52 BEAM ANGLE 120º X312 CODE X312 WATTAGE 12W CUT-OUT (mm) […]
Edge Down Lights Round LELQ series
Available Wattage = 3W – 18W Specifications 3W 6W 12W 15W 18W 3W CODE LEL3Q/4 DIMENSION(mm) 90x90x10 CUT-OUT(mm) 75×75 LED SIZE SMD LED LED Bridgelux /Edison/Seoul IP RATING 20 COLOR TEMP 3000 / 4000 / 6500k LUMEN OUTPUT >180 MOUNTING Recess Mount WARRANTY 2 Yrs 6W CODE LEL6Q/4 DIMENSION(mm) 120x120x15 CUT-OUT(mm) 100×100 LED SIZE SMD […]
Edge Down Lights Round LELR series
Available Wattage = 3W – 18W Specifications 3W 6W 9W 12W 15W 18W 3W CODE LEL3R/4 DIMENSION(mm) 90×10 CUT-OUT(mm) 75 LED SIZE SMD LED LED Bridgelux /Edison/Seoul IP RATING 20 COLOR TEMP 3000 / 4000 / 6500k LUMEN OUTPUT >180 MOUNTING Recess Mount WARRANTY 2 Yrs 6W CODE LEL6R/4 DIMENSION(mm) 120×15 CUT-OUT(mm) 100 LED SIZE […]
LED DOWN Light DL117, DL1115, DL1125.
Available Wattage = 7W, 15W, 25W Specifications 7W 15W 25W 7W CODE DL117 DIMENSION(mm) 95×35 CUT-OUT(mm) 70 LED SIZE SMD LED LED Bridgelux /Edison/Seoul IP RATING 20 COLOR TEMP 3000 / 4000 / 6500k LUMEN OUTPUT >420 MOUNTING Recess Mount WARRANTY 2 Yrs 15W CODE DL1115 DIMENSION(mm) 130×35 CUT-OUT(mm) 106 LED SIZE SMD LED LED […]
LED Down Light DL02 series
Available Wattage = 8W, 12W, 16W, 24W, 30W, 36W Specifications 8W 12W 16W 24W 30W 36W 8W CODE DLO28 DIMENSION(mm) 75x75x52 CUT-OUT(mm) 60×60 LED SIZE SMD LED LED Bridgelux/Cree/ Edison IP RATING 20 COLOR TEMP 3000 / 4000 / 6500k LUMEN OUTPUT >480 MOUNTING Recess Mount WARRANTY 2 Yrs 12W CODE DLO212 DIMENSION(mm) 105x105x53 CUT-OUT(mm) […]
LED Down Light DL01 series
Available Wattage = 8W, 12W, 16W, 24W, 30W, 36W Specifications 8W 12W 16W 24W 30W 36W 8W CODE DL018 DIMENSION(mm) 82 x 53 CUT-OUT(mm) 58 LED SIZE SMD LED LED Bridgelux/Cree/Edison IP RATING 20 COLOR TEMP 3000 / 4000 / 6500K LUMEN OUTPUT >60 lm / W BEAM ANGLE 120° MOUNTING Recess Mount WARRANTY 2 […]
